To design furniture, we not only need to measure the length and height of the walls in an apartment or house, but also need to measure the angle at which the furniture will be installed.
Why should this be done? - so that there are no problems with installation, in order to avoid huge side gaps, and so that the necessary adjustments can be made even in production. For example, a deployed corner will not allow you to mount a corner kitchen without additional undercuts of the internal corner modules and countertops.
An acute corner can pull the furniture body out of the dimensions of the installation dimensions, because it is impossible to install a furniture module into the right corner. Actually, when the reasons were found out and the need to measure the angle is obvious - it's up to the small - to measure the angle.
If you have a goniometer in your home arsenal, then no problem, and if not, then the method described below will always come to the rescue. The first thing to do is to mark two points on the walls at the same level (at the height where the furniture module will be installed) as follows:
From the corner with a tape measure, measure the size, for example, 500mm, along the left and right wall. and put points.
Next, measure the diagonal - i.e. distance between points.
So, for example, we have three sizes - leg 500mm., 500mm. and a diagonal of 700mm.
The next step is to build a corner on a template from any material.
In our case, I will show how to do this in the autocad program, but you can also do it with a compass, ruler, protractor and material for the template.
1) Draw a horizontal line of 500mm. with AB dots. (See the drawing below.)
2) Draw a circle with a radius of 500mm. centered on point "B".
3) Draw a second circle with a radius of 700mm. centered on point "A".
4) At the point of intersection of the circles, put the point "C".
5) We connect the points "B" and "C" with a segment and get our angle.
6) Next, it remains to measure the angle with a protractor on a template or with a special tool in the autocad program. and apply the existing drawing for design.

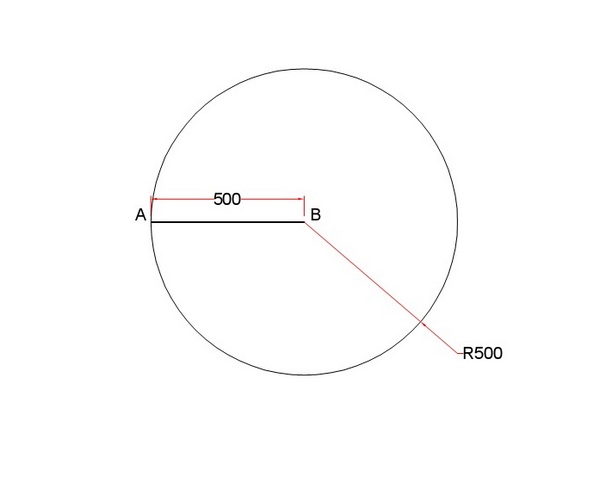

We draw a horizontal line of 500 mm. with AB dots.

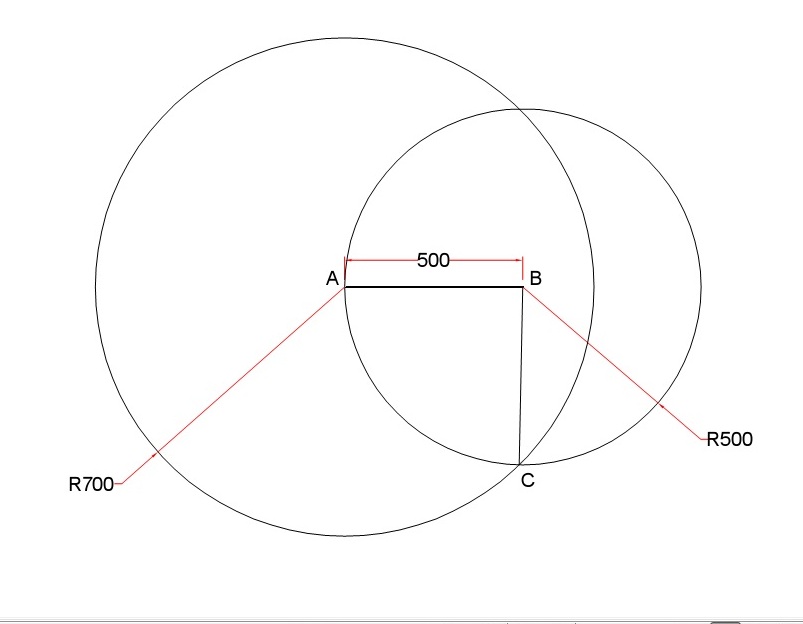

We draw a second circle with a radius of 700mm. centered on point "A".
We connect the points "B" and "C" with a segment and get our angle.
When the drawing is built, we can finally conclude that the measured angle is 89 degrees, the angle is sharp and it will not be able to negatively affect the installation of furniture, because. 1 degree is pretty small.
